Further Maths - Dot Product
2021-01-14
What is the word explanation for the scalar/dot produt of two vectors?
The sum of the products of the components.
What’s the notation for the dot product of $\pmb{a}$ and $\pmb{b}$?
What’s the sum formula for $\pmb{a} \cdot \pmb{b}$?
#####
\[\left(\begin{matrix} 2 \\ 2 \\ 2 \end{matrix}\right) \cdot \left(\begin{matrix} 1 \\ 2 \\ 3 \end{matrix}\right)\]What is the dot product of the two vectors??
\[12\]What is $\hat{i} \cdot \hat{i}$?
What is $\hat{j} \cdot \hat{j}$?
Does the dot product give a vector or scalar answer?
Scalar.
What does it mean if the dot product of two vectors is zero?
The two vectors are perpindicular.
#####
\[\pmb{a} \cdot \pmb{b} = 0\]What is true about $\pmb{a}$ and $\pmb{b}$?? They are perpindicular.
What’s the intuition behind the dot product?
The closer it is to zero, the more different the vectors are.
What is the $\cos$ formula for the dot product of $\pmb{a}$ and $\pmb{b}$?
#####

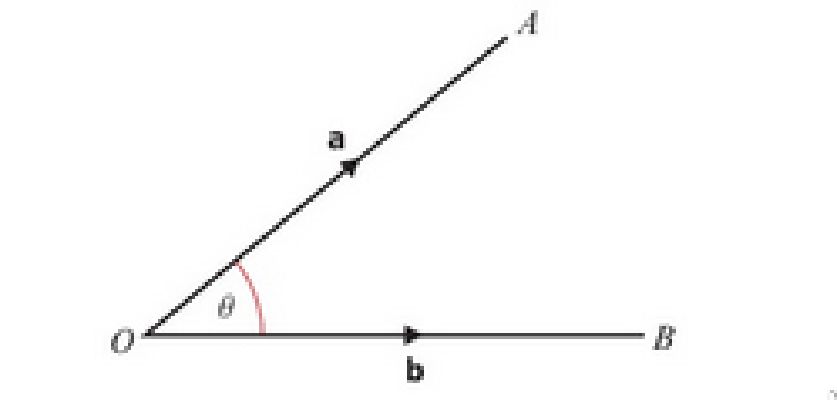

\[\pmb{a} \cdot \pmb{b} = \vert \pmb{a} \vert \times \vert \pmb{b} \vert \times \cos\theta\]What does $\theta$ represent here?? The angle between two vectors $\pmb{a}$ and $\pmb{b}$.
#####
\[\pmb{a} \cdot \pmb{b} = \vert \pmb{a} \vert \times \vert \pmb{b} \vert \times \cos\theta\]What does $ \vert \pmb{a} \vert $ represent here?? The length of vector $\pmb{a}$
#####
\[\pmb{a} \cdot \pmb{b} = \vert \pmb{a} \vert \times \vert \pmb{b} \vert \times \cos\theta\]Can you make $\cos$ the subject of the formula??
\[\cos\theta = \frac{\pmb{a} \cdot \pmb{b}}{|\pmb{a}||\pmb{b}|}\]#####
\[\pmb{a} \cdot \pmb{b} = \vert \pmb{a} \vert \times \vert \pmb{b} \vert \times \cos\theta\]Why must a value of $0$ mean the two vectors are perpindicular?? Because $\cos(90^{\circ}) = 0$.
#####
\[\cos\theta = \frac{\pmb{a} \cdot \pmb{b}}{ \vert \pmb{a} \vert \vert \pmb{b} \vert }\]What do the two inverses of $\cos$ mean??
- One inverse is the actute angle
- One inverse is the obtuse angle
What’s the formula for $\cos\theta$?
What’s the formula for $\cos\theta$?
