Computational Complexity HT25, Nondeterminism

• Accept: There exists at least one accepting path
• Reject: All paths end with a reject state

For all $x \in \Sigma^\ast$, all paths of $M$ either accept or reject in time $t$.

For all $x \in \Sigma^\ast$, all paths of $M$ either accept or reject in space $s$.

To accept as a non-deterministic Turing machine means that there is at least one accepting path, and rejecting means that all paths end with a reject state. So flipping the output of one particular path does not tell you about the global properties.

Suppose that some language $L$ satisfies the above condition where $M$ is a polynomial time decider for $R$. We wish to show it’s accepted by some polynomial time NTM $N$. Define as follows:

• $N$ on input $x$:
  • Computes $p( \vert x \vert )$, guessing $y$ of length $\le p( \vert x \vert )$.
  • Runs $M(x, y)$ and accepts iff $M$ accepts.

For the other direction, suppose that $N$ is a NTM running in time $q( \vert x \vert )$ and deciding a language $L$. Let $R(x, y) = 1$ iff $y = \langle c _ 1, c _ 2, \ldots, c _ t \rangle$ encodes an accepting computation of $M$ on $x$.

Note that each configuration $c _ i$ of $M$ has size $O(q( \vert x \vert ))$, and there are a maximum of $t \le q( \vert x \vert )$ configurations, so the total size of $y$ is bounded by $q^2$, a polynomial.

\[\mathsf{NP} = \bigcup_{k \in \mathbb N} \mathsf{NTIME}(n^k)\]

$\mathsf{NP}$ is the set of all languages $L$ such that there exists a polynomial time relation $R$ such that $\forall x$, $x \in L$ iff $\exists y$ such that $ \vert y \vert = \text{poly}( \vert x \vert )$ and $R(x, y) = 1$.

\[\mathsf{NEXP} = \bigcup_{k \in \mathbb N} \mathsf{NTIME}(2^{n^k})\]

\[\mathsf{coNP} = \\{ L \mid \overline L \in \mathsf{NP}\\}\]

$L \in \mathsf{coNP}$ iff there is a polynomial-time computable relation $R$ such that $x \in L$ iff $\forall y \in \{0, 1\}^{\text{poly}( \vert x \vert )} . R(x, y)$.

Suppose $L \in \mathsf{coNP}$. Then $\overline L \in \mathsf{NP}$. Therefore there is a polynomial time relation $\overline R$ such that $x \in \overline L$ iff $\exists y \in \{0, 1\}^{\text{poly}( \vert x \vert )} y . \overline R(x, y)$. Thus $x \in L$ iff $\forall y \in \{0, 1\}^{\text{poly}( \vert x \vert )} . \lnot \overline R$, which gives the required characterisation by taking $R := \lnot \overline R$.

Now suppose that $L$ is characterised by $x \in L$ iff $\forall y \in \{0, 1\}^{\text{poly}( \vert x \vert )} . R(x, y)$. Then $x \in \overline L$ iff $\exists y \in \{0, 1\}^{\text{poly}( \vert x \vert )} y . \lnot R(x, y)$, and so $\overline L$ is in $\mathsf{NP}$. Hence $L \in \mathsf{coNP}$.

\[\mathsf{DTIME}(T) \subseteq \mathsf{NTIME}(T)\]

\[\mathsf{NTIME}(T) \subseteq \mathsf{DSPACE}(T)\]

Overall idea: Enumerate all possible sequences of configurations of the non-deterministic machine, and check if they are valid. This might take a very long time but only uses $O(T)$ space.

---

Suppose $L \in \mathsf{NTIME}(T)$ with corresponding TM $M$.

Define a deterministic TM $N$ which runs in space $O(T)$ as follows. Let $d$ be a constant that bounds the number of successors of any configuration of $M$.

On input $x$:

• $N$ uses the space constructibility of $T$ to compute $T( \vert x \vert )$.
• $N$ enumerates all strings of length $T( \vert x \vert )$ over the alphabet $\{1, 2, \ldots, d\}$ which represent possible computation paths of $M$.
• For each possible computation path, $N$ checks if the computation path is valid and leads to acceptance, halting and accepting if it does.
• If none of the computation paths is a valid accepting path, $N$ rejects.

Note that $N$ only uses space $O(T( \vert x \vert ))$ since at any point in its computation, it only needs to store the current computation path of $M$ being simulated, as well as the current configuration of $M$.

Since the computation path being simulates is of length $O(T( \vert x \vert ))$, $M$ uses space at most $O(T( \vert x \vert ))$, and hence the stored configuration of $M$ also has size at most $O(T( \vert x \vert ))$.

\[\mathsf{NSPACE}(S) \subseteq \mathsf{DTIME}(2^{O(S)})\]

Let $L$ be any language in $\mathsf{NSPACE}(S)$ and $M$ a Turing machine that decides $L$ in space $O(S)$.

Note that there are at most $(n+1)2^{O(S)}$ possible configurations of $M$ on any input of length $n$, since there are at most $(n+1)$ possible positions of the input tape head, at most $\text{poly}(S)$ positions of the work tape heads, at most $2^{O(S)}$ possible contents of the work tapes, and at most constantly many possible states of the machine.

Treat these configurations as a graph with edges between configurations. Implement BFS on the configuration graph, which takes space $2^{O(S)}$ by constructing the adjacency matrix.

For all $L’ \in \mathsf{NP}$, $L’ \le _ m^\text{poly} L$.

Suppose $L$ is $\mathsf{NP}$-complete. Then $\mathsf{P} \ne \mathsf{NP}$ iff $L \notin \mathsf{P}$. (i.e. to prove that $\mathsf{P} \ne \mathsf{ NP }$, it suffices to show that any $\mathsf{ NP}$-complete language is not in $\mathsf{P}$).

---

Proof: The forward direction follows from the fact that if $L \in \mathsf{ P}$, then all $\mathsf{NP}$-languages could be decided in polynomial time, and the backwards direction follows from the fact that $L \in \mathsf{NP}$.

\[L = \\{ \langle M, x, 1^t \rangle : M \text{ is an NTM that accepts }x\text{ in }t \text{ steps} \\}\]

---

Proof: To establish that $L$ is $\mathsf{NP}$, run the universal NTM for $t$ steps with input $\langle M, x \rangle$ and accept only if $M$ accepts $x$. This does polynomial time.

Now suppose $L’ \in \mathsf{NP}$ and $M _ {L’}$ is an NTM deciding $L$ in time $p( \vert x \vert )$ for large enough $x$. Define

\[f(x) = \langle M_{L'}, x, 1^{p(|x|)} \rangle\]

Note that $M _ L$ is a fixed machine that does not depend on the input, and hence $f(x)$ can be computed in polynomial time. Then $x \in L \iff M _ L$ accepts $x$ within $p( \vert x \vert )$ steps, as required.

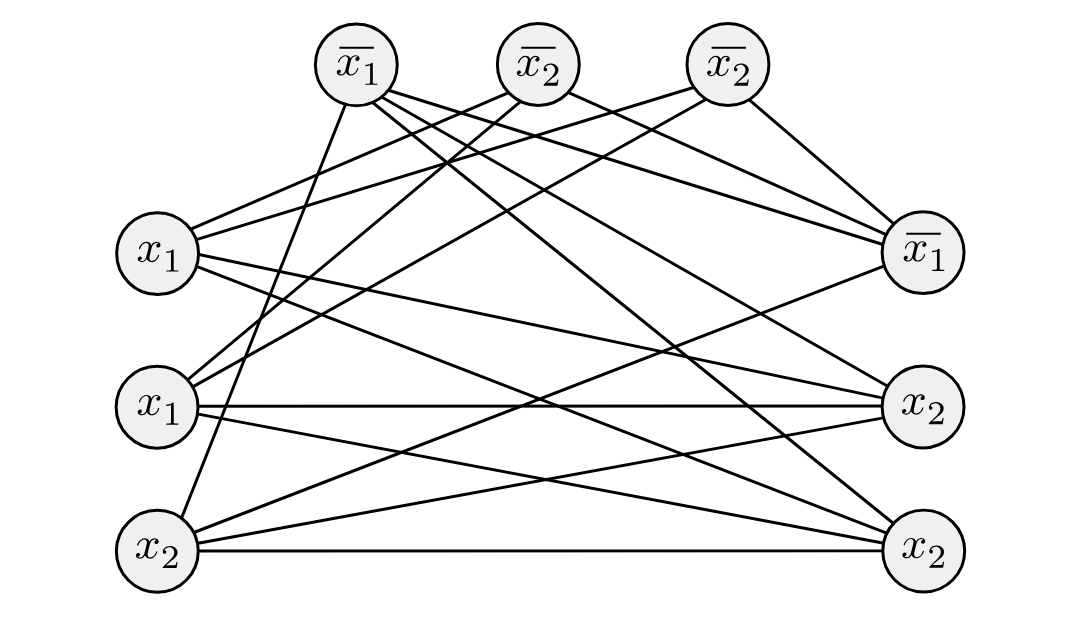

We reduce from $3\text{-}\mathsf{SAT}$, i.e. given a formula 3CNF $\varphi$ we wish to find $\langle G, k \rangle$ such that $\varphi$ is satisfiable iff $\langle G, k \rangle \in \mathsf{CLIQUE}$.

Suppose $\varphi = \bigwedge _ {i = 1}^k (a _ i \lor b _ i \lor c _ i)$. For each literal $a _ i, b _ i, c _ i$ in $\varphi$, introduce a corresponding node of $G$ (and so there might be multiple occurrences of $x _ i$ in the graph). Add edges between every node, except:

• A literal and its dual (i.e. $x _ i$ and $\overline{x _ i}$)
• Literals occurring in the same clause.

Now suppose $\varphi$ has a satisfying assignment. Then at least one node is true in every clause. Pick one of the true literals arbitrarily. The nodes selected form a $k$-clique, since there are $k$ nodes and every node is connected to the other because each pair of nodes does not meet either of the conditions above.

Now suppose that $G$ has a $k$-clique. Construct an assignment by taking one literal from each of the triples corresponding to each clause introduced in the graph, and setting it to true. It’s straightforward to verify that this is a satisfying assignment.

$L \in \mathsf{coNP}$ and for every language $L’ \in \mathsf{coNP}$, $L’ \le _ m^\text{poly} L$.

$L$ is $\mathsf{coNP}$-complete with respect to polynomial time $m$-reductions iff $\overline L$ is $\mathsf{NP}$-complete with respect to polynomial time $m$-reductions.

\[\mathsf{TAUT} = \\{ \varphi \mid \varphi \text{ is a propositional tautology}\\}\]

It is $\mathsf{coNP}$-complete as $\varphi$ is a tautology iff $\lnot \varphi$ is unsatisfiable, so $\mathsf{TAUT}$ and $\mathsf{UNSAT}$ polynomial-time $m$-reduce to one another. As $\mathsf{UNSAT}$ is $\mathsf{coNP}$-complete (it is the complement of a $\mathsf{NP}$-complete language), it follows that $\mathsf{TAUT}$ is $\mathsf{coNP}$-complete.

Any language $L \in \mathsf{NP}$ is decidable in polynomial time with oracle access to $\overline L \in \mathsf{coNP}$.

Let $A$ be a polynomial time algorithm for $\mathsf{SAT}$. We define a recursive algorithm $S$ which solves the search problem in polynomial time.

Given a formula $\varphi$, if $\varphi$ has no variables, $S$ evaluates $\varphi$ in polynomial time and outputs the empty string if $\varphi$ is true and “fail” otherwise.

If $\varphi$ does contain variables, let $x$ be the lexicographically first variable in $\varphi$. Let $\varphi _ 0$ be the formula obtained from $\varphi$ by substituting $x = 0$, and $\varphi _ 1$ be obtained by substituting $x = 1$. $S$ runs $A$ on $\varphi _ 0$ and if accepts, $S$ outputs $x = 0$ concatenated with $S(\varphi _ 0)$, otherwise $S$ outputs $x = 1$ concatenated with $S(\varphi _ 1)$.

This takes polynomial time, since there are polynomially many variables and each iteration takes polynomial time.

Iteratively try and connect pairs of vertices; if there remains a $k$-colouring even after they are connected then there is a $k$-colouring where they are set to the same colour.

@example~ @exam~

Suppose $L \in \mathsf{NTIME}(2^{n^c})$ and an NTM $N$ decides it. Consider the language

\[L_\text{pad} = \lbrace \langle x, 1^{2^{|x|^c} } \rangle : x \in L\rbrace\]

$L _ \text{pad} \in \mathsf{NP}$: Consider the NTM which given $y$, first checks if there is a string $z$ such that $y = \langle z, 1^{2^{ \vert z \vert ^c} } \rangle$. If not, output $0$. Otherwise, if $y$ is of this form, then simulate $M$ on $z$ for $2^{ \vert z \vert ^c}$ steps and output its answer. Then the running time is polynomial in $ \vert y \vert $, and so $L _ \text{pad} \in \mathsf{NP}$.

Then if $\mathsf P = \mathsf{NP}$, it follows that $L _ \text{pad}$ is in $\mathsf P$. But if $L _ \text{pad}$ is in $\mathsf P$, then $L$ is $\mathsf{EXP}$ since to determine whether an input $x$ is in $L$, we may pad the input and decide whether it is in $L _ \text{pad}$ using the polynomial time machine for $L _ \text{pad}$.

This language is both in $\mathsf{NP}$ and $\mathsf{coNP}$ – a certificate is given by the factorisation of $m$. If this language were $\mathsf{NP}$-complete, it would imply that $\mathsf{NP} = \mathsf{coNP}$, which seems unlikely.
